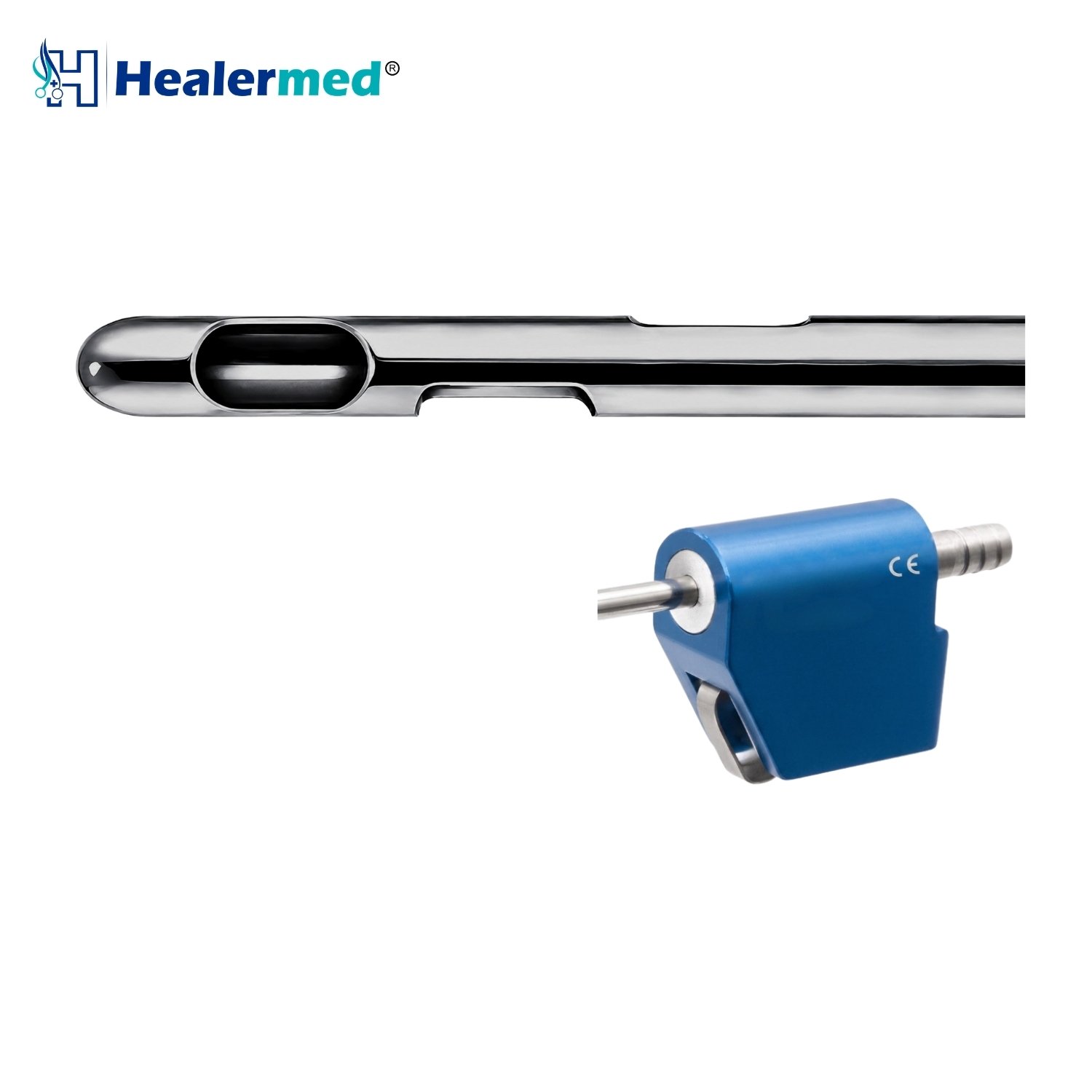

3 Spiral Port Cannula MicroAire PAL Compatible

The MicroAire PAL Compatible 3 Spiral Port Liposuction Cannula is a blunt-tip aspiration cannula with three spiral ports, fitted with a hub built for MicroAire PAL power-assisted handpieces. The handpiece drives a short reciprocating stroke so the cannula advances with far less force, while the spiral ports keep the draw spread across a wide, soft-edged band. It is listed under 3 Spiral Port Liposuction Cannulas, part of the Healermed Liposuction Cannulas and Accessories range.

Buyers also search for this instrument as a Carraway cannula, a spiral port lipo cannula, or a three port spiral aspiration cannula.

Power-Assisted Spiral Port Cannula for PAL Handpieces

Power-assisted liposuction changes how force reaches the tissue. The handpiece supplies the movement, so the surgeon concentrates on laying passes evenly rather than pushing. That pairs naturally with a blending port pattern: the powered stroke keeps the pass rate consistent, which is exactly what a spiral pattern needs to deliver an even result.

How the Spiral Port Pattern Works

The three ports are not grouped at one point on the shaft. They are stepped along it and rotated around it, so each opening sits further back and turned to a different side than the one before — a spiral rather than a cluster. That layout is the whole difference between this cannula and a Mercedes tip, where the three ports sit level with each other around the circumference.

The effect shows up in the tunnel the cannula leaves. With the ports level, one pass draws from one narrow band of tissue, and even coverage depends on the surgeon laying the passes side by side accurately. With the ports spiralled, a single pass takes a little from three different depths and directions at once, so the tunnel is wider and less sharply defined. Adjacent passes overlap more readily and the transitions between them are softer.

That is why a spiral pattern is chosen where a visible tunnel line would be a problem: in the superficial layer, over the flanks and back, and in thin or previously operated tissue. It removes at a moderate rate rather than a fast one, and gives back a more forgiving result at the edges.

The distal tip is closed and rounded. It separates the plane by blunt dissection as the cannula advances, pushing vessels and nerves aside rather than dividing them, and the vacuum works through the three spiral ports rather than the end of the shaft.

Key Features

• ✔ Hub built to fit MicroAire PAL power-assisted handpieces
• ✔ Consistent powered pass rate suits a blending port pattern
• ✔ Shaft dimensioned for repeated reciprocating motion under vacuum
• ✔ Three ports stepped along the shaft and rotated — a spiral, not a cluster
• ✔ Each pass draws from three depths and angles, so the tunnel is wider and softer edged
• ✔ Adjacent passes overlap and blend more readily, reducing visible tunnel lines
• ✔ Closed blunt tip separates the plane without cutting vessels or nerves
• ✔ Deburred port edges for clean passage through fat
• ✔ One-piece German stainless steel shaft, fully reusable

Specifications

Clinical Applications

• Superficial liposuction where a visible tunnel line would show through the skin
• Flanks, back and outer thighs, where passes must blend across a wide area
• Thin and previously operated tissue with little margin for irregularity
• Arm, neck and submental work with the shorter, smaller-diameter sizes

Material and Sterilization

The cannula is made from German stainless steel with a passivated surface that resists corrosion and pitting through repeated cleaning cycles. It is reusable and can be steam autoclaved at 134°C. Flush the lumen and all three ports with clean water immediately after use and dry fully before autoclaving. Because the ports sit at different points along the shaft, turn the cannula while flushing so water passes through each one, and check every opening under light before sterilization.

How to Choose

Order this fitting only if you already own a PAL power-assisted handpiece; the hub will not fit a syringe or a manual handle. Diameter sets how much fat comes out per pass and length sets the reach. For body contouring of the abdomen, flanks, back and thighs, the 3.0mm to 4.0mm diameters in 25cm to 35cm are the usual working range, and this is where the spiral pattern earns its place because those are the areas where tunnel lines show. The 2.0mm to 2.5mm range in 15cm to 25cm covers arms, the neck and superficial work. The 1.0mm to 1.5mm diameters in 5cm to 12cm are for facial and submental contouring. Match the fitting to the syringe, vacuum line or handpiece already in your theater.

Why Buy Direct From the Manufacturer

Manufactured by Healermed Instruments, a surgical instruments manufacturer and exporter based in Sialkot, Pakistan. Factory-direct pricing removes the importer and distributor layer. Production runs under an ISO 13485 and FDA CGMP quality system, with ISO 9001 and CE Mark certification. OEM manufacturing and custom branding are available for distributor and brand-owner orders.

Trademark notice: MicroAire and PAL are trademarks of MicroAire Surgical Instruments LLC. Healermed Instruments is not affiliated with, endorsed by, or sponsored by MicroAire. This cannula is an independently manufactured instrument and the compatibility reference is provided for the buyer's guidance only.

Related Instruments

Other fittings in the same cannula range:

• 3 Spiral Port Liposuction Cannula – Lumsail Compatible
• 3 Spiral Port Liposuction Cannula – Fixed Power Handle
• 3 Spiral Port Liposuction Cannula – Toomey Hub, 60cc
• 3 Spiral Port Liposuction Cannula – main product page
• 3 Spiral Port Liposuction Cannulas – all fittings

Frequently Asked Questions

What is a power-assisted spiral port cannula used for?

It is used to remove subcutaneous fat under vacuum when the cannula is driven by a reciprocating handpiece instead of by hand. The powered stroke keeps the pass rate consistent, which is what a blending spiral port pattern needs to leave an even result across a wide area.

What is the difference between a spiral port and a Mercedes tip cannula?

On a Mercedes tip the three ports sit level with each other around the shaft; on a spiral port cannula they are stepped along the shaft and rotated, so each sits at a different point and angle. Mercedes clears faster from a narrow band; the spiral pattern draws from a wider, softer-edged band and blends between passes more easily.

Is this cannula autoclavable?

Yes. The instrument is fully reusable and can be steam autoclaved at 134°C. Flush the lumen and all three ports with clean water immediately after use, turning the cannula so water passes through each one, then dry completely before sterilization. Inspect every opening each cycle, since the pattern depends on all three drawing evenly.

What is the minimum order quantity for bulk orders?

The minimum order quantity is agreed per order rather than set at a fixed number. Send us the sizes, fittings and quantities you need through the wholesale request page and we will confirm the minimum for that specification. This lets a small distributor start with a trial order and a larger importer scale up on the same terms.

Do you provide samples?

Yes. Samples are available on request and the buyer covers the shipping charges. Send us your handpiece details with the diameter and length you want to evaluate. Testing a sample in your own handpiece before a bulk order is strongly recommended for any powered fitting.

Can I order a custom size?

Yes. Custom diameters, working lengths and port configurations are available on request in addition to the standard size grid. Send your specification through the wholesale request page and our production team will confirm what can be produced. Custom branding is also available for distributor and OEM orders.
