Double Mercedes Liposuction Cannula – Stainless Steel Luer Lock

Liposuction Cannulas and Accessories › Double Mercedes Six Port Liposuction Cannulas › Double Mercedes Six Port Liposuction Cannula – Stainless Steel Luer Lock

The Double Mercedes Six Port Liposuction Cannula with Stainless Steel Luer Lock fitting is supplied with a hub built for that equipment, carrying the same shaft and tip as every other fitting in the range. It is listed under Double Mercedes Six Port Liposuction Cannulas, part of the Healermed Liposuction Cannulas and Accessories range.

Surgeons also search for this cannula as a double Mercedes cannula, a six port Mercedes cannula, a dual Mercedes tip lipo cannula, or a two-group Mercedes aspiration cannula.

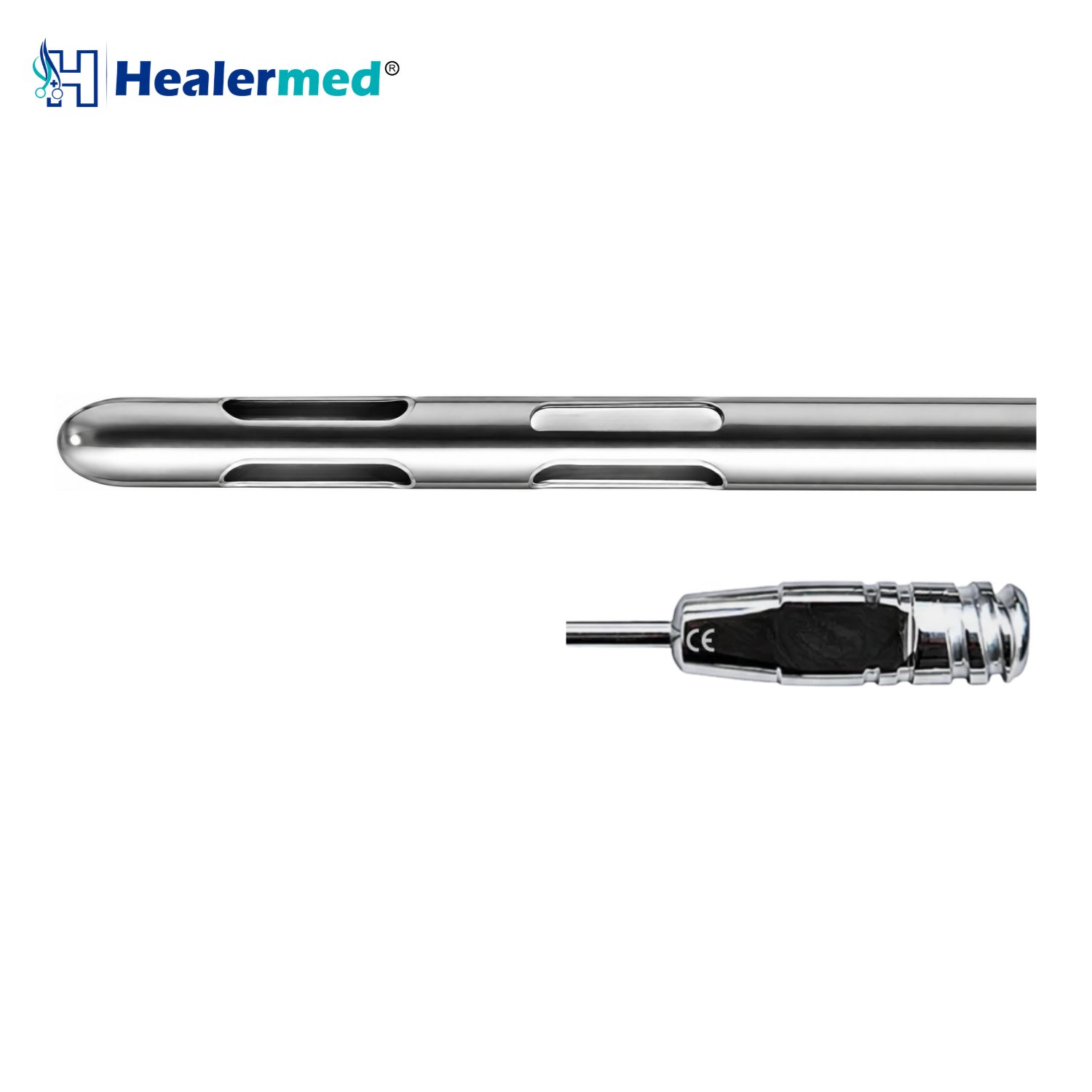

Double Mercedes Six Port Liposuction Cannula — Stainless Steel Luer Lock

Hub material decides how long a reusable instrument stays usable. Anodized aluminium hubs are lighter and cheaper, but the coating fades and the thread can gall after repeated steam cycles. A solid stainless steel hub keeps its thread form and finish far longer.

How the Double Mercedes Pattern Works

A standard Mercedes tip carries three ports set around the shaft at roughly 120 degrees. This cannula carries two of those groups, one behind the other along the shaft, giving six ports in total.

Doubling the group does not simply double the flow. Because each trio is symmetrical in its own right, the vacuum load stays balanced across the shaft exactly as it does on a single Mercedes, so the cannula still tracks straight and does not pull to one side. What changes is the length of the working aperture: removal now happens over a longer stretch of shaft rather than in one narrow band near the tip.

That gives a wider lane per pass while keeping the behaviour a surgeon already knows. Anyone who works with a Mercedes tip can move to this pattern without relearning how the instrument handles, which is the practical reason it exists. On a large area it clears in noticeably fewer passes, and on fibrous tissue the second group keeps drawing when the leading group is working through resistance.

The trade is judgement. A longer aperture takes from a longer stretch, so it is harder to know how much has come from any one point. That places this cannula in the debulking and mid-stage part of a case, with a single Mercedes or a low-port pattern taking over for shaping. The distal tip is closed and rounded, separating the plane by blunt dissection while the vacuum works through the six side ports.

Key Features

• ✔ Solid stainless steel hub with no anodized coating to wear off
• ✔ Two Mercedes groups of three ports, giving six ports over a longer working aperture
• ✔ Each trio is symmetrical, so the vacuum load stays balanced and the cannula tracks straight
• ✔ Clears a wider lane per pass than a single Mercedes tip
• ✔ Second group keeps drawing while the leading group works through fibrous resistance
• ✔ Handles like a Mercedes tip, so no relearning for surgeons already using one
• ✔ One-piece German stainless steel shaft, fully reusable and autoclavable
• ✔ Custom diameters, lengths and group spacing available on request

Specifications

Clinical Applications

• Debulking and mid-stage contouring of the abdomen, back and thighs
• Large areas where pass count and operating time need to come down
• Fibrous tissue where a single port group stalls against resistance
• Body work with the 3.0mm to 5.0mm diameters

How to Choose

Diameter sets how much fat comes out per pass and length sets the reach. This pattern is built for area, so the 3.5mm to 5.0mm diameters in 30cm to 35cm are the core working range for the abdomen, back and outer thighs. The 3.0mm in 25cm to 30cm suits flanks and smaller body areas. Below 2.5mm a second port group gives little advantage, and for shaping a single Mercedes or a low-port cannula is the better instrument.

Material and Sterilization

The instrument is made from German stainless steel with a passivated surface that resists corrosion and pitting through repeated cleaning cycles. It is reusable and can be steam autoclaved at 134°C. Clean immediately after use and dry fully before autoclaving. Six ports across two groups means twelve edges and two sets of openings that can hide residue from each other, so turn the cannula through a full rotation while flushing and confirm water runs from every port before drying. Check each edge under light at every cycle, since the pattern only tracks straight while all six draw evenly.

Why Buy Direct From the Manufacturer

Manufactured by Healermed Instruments, a surgical instruments manufacturer and exporter based in Sialkot, Pakistan. Factory-direct pricing removes the importer and distributor layer. Production runs under an ISO 13485 and FDA CGMP quality system, with ISO 9001 and CE Mark certification. OEM manufacturing and custom branding are available for distributor and brand-owner orders.

Other Fittings for This Cannula

More Liposuction Cannulas and Accessories

Frequently Asked Questions

What is a double mercedes six port liposuction cannula used for?

It is used to remove subcutaneous fat under vacuum during liposuction and body contouring, in the debulking and mid-stage part of a case. Two balanced Mercedes port groups give six ports over a longer working aperture, so a large area clears in fewer passes while the cannula still tracks straight.

What is the difference between a double Mercedes and a single Mercedes tip cannula?

A single Mercedes has three ports in one group near the tip, so removal happens in a narrow band. A double Mercedes has two such groups along the shaft, six ports in total, so the working aperture is longer and a wider lane clears per pass. Both track straight, because each trio is balanced in its own right.

Is this instrument autoclavable?

Yes. It is fully reusable and can be steam autoclaved at 134°C. Clean immediately after use, remove all residue before sterilization, and dry completely.

Which size should I use?

The 3.5mm to 5.0mm diameters in 30cm to 35cm are the core working range for the abdomen, back and outer thighs. Use 3.0mm in 25cm to 30cm for flanks and smaller body areas. Below 2.5mm the second port group gives little advantage, and for shaping a single Mercedes or low-port cannula is the better choice.

What is the minimum order quantity for bulk orders?

The minimum order quantity is agreed per order rather than set at a fixed number. Send us the sizes, fittings and quantities you need through the wholesale request page and we will confirm the minimum for that specification.

Do you provide samples?

Yes. Samples are available on request and the buyer covers the shipping charges. A sample also lets you run the steel hub through your own sterilization protocol before a bulk order.

Can I order a custom size?

Yes. Custom diameters, working lengths and configurations are available on request in addition to the standard size grid. Send your specification through the wholesale request page and our production team will confirm what can be produced.
