Micro Ear Needles

ENT Surgical Instruments › Ear Surgery Instruments › Micro Ear Needles

Micro ear needles are fine pointed instruments for ear surgery and ear treatment. Healermed makes 12 in three types: Politzer tympanum needles for opening the eardrum (paracentesis), including the furuncle knife and angled and Lucae bayonet needles with spear or lancet points; Barbara micro needles in five shapes for middle ear microsurgery; and the Rosen 45 degree curved tip needle. This category is part of Ear Surgery Instruments under ENT Surgical Instruments.

Politzer Tympanum Needles, Barbara and Rosen Micro Ear Needles

All Micro Ear Needles in the Range

Politzer Tympanum (Paracentesis) Needles

A Politzer tympanum needle, also called a paracentesis needle, has a small, sharp point made to open the eardrum. The surgeon makes a small, controlled opening (paracentesis or myringotomy) so fluid or pus can drain from the middle ear.

Healermed makes six Politzer needles: the standard 17.5cm needle, the 16cm furuncle knife, angled needles with a spear or lancet point (15.5cm and 16cm), and 18cm Lucae bayonet needles with a spear or lancet point. A spear point is narrow and makes a small, neat puncture; a lancet point is a little broader and opens a slightly longer cut in one movement. All are long enough to work through an ear speculum with the hand well back from the ear.

• Politzer Micro Ear Needle, 17.5cm — This is the standard Politzer tympanum needle: 17.5cm long with a straight shaft and a fine sharp point.

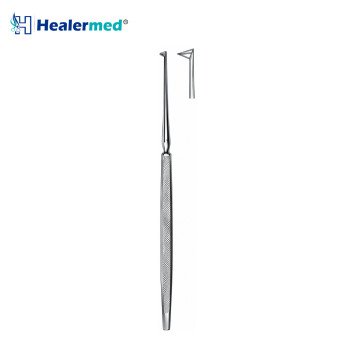

• Politzer Furuncle Knife Micro Ear Needle, 16cm — This Politzer pattern has a small knife-shaped point instead of a needle point.

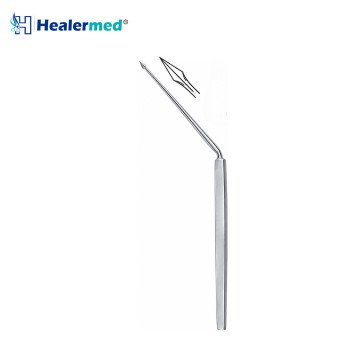

• Angled Spear Shaped Politzer Micro Ear Needle, 15.5cm — The shaft is angled and the point is spear-shaped.

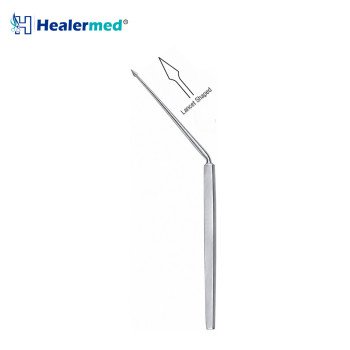

• Angled Lancet Shaped Politzer Micro Ear Needle, 16cm — The shaft is angled and the point is lancet-shaped.

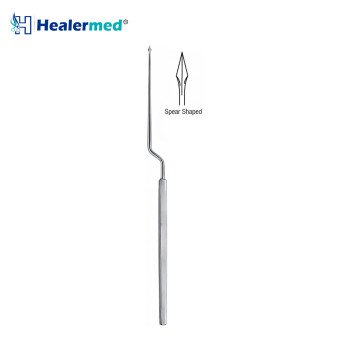

• Lucae Bayonet Spear Shaped Politzer Micro Ear Needle, 18cm — A Lucae bayonet shaft with a spear-shaped point, also known as a Politzer-Lucae needle.

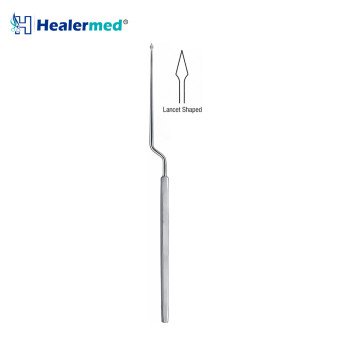

• Lucae Bayonet Lancet Shaped Politzer Micro Ear Needle, 18cm — A Lucae bayonet shaft with a lancet-shaped point.

Barbara Micro Ear Needles

Barbara micro ear needles are fine, pointed instruments for middle ear microsurgery. They move, lift and position very small things under the microscope: grafts, pieces of tissue, gelatin sponge and small prostheses.

Barbara needles are also used to separate fine adhesions and to test how freely the small bones of hearing move. Healermed makes five Barbara needles: straight, 45 degree angled tip and 45 degree curved tip at 16cm, and 45 degree angled and 45 degree S-shaped at 15.5cm. The shape of the working end decides where the point can reach.

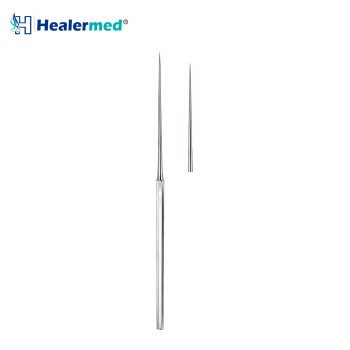

• Barbara Straight Micro Ear Needle, 16cm — The straight Barbara needle has a straight shaft and a straight fine point, for work directly in line with the view.

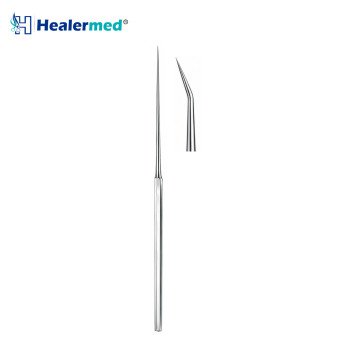

• Barbara 45 Degree Angled Tip Micro Ear Needle, 16cm — Only the tip is angled, at 45 degrees.

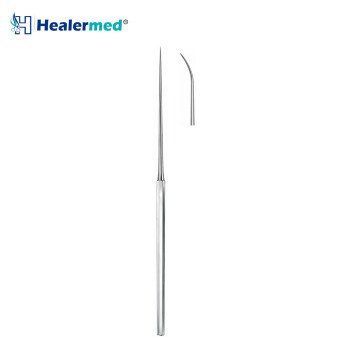

• Barbara 45 Degree Curved Tip Micro Ear Needle, 16cm — The tip curves smoothly through 45 degrees.

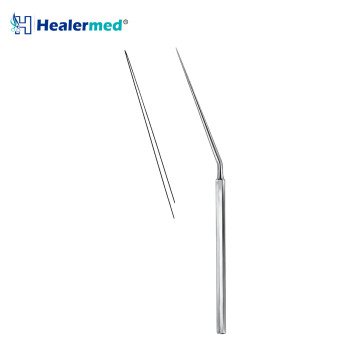

• Barbara 45 Degree Angled Micro Ear Needle, 15.5cm — This is the 15.5cm Barbara needle with a 45 degree angled working end.

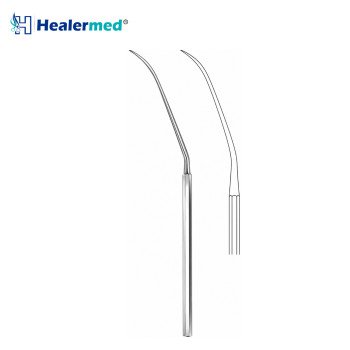

• Barbara 45 Degree S Shape Curved Micro Ear Needle, 15.5cm — The working end follows an S-shaped double curve that ends at 45 degrees.

Rosen Micro Ear Needle

The Rosen micro ear needle is a fine pointed instrument for middle ear microsurgery, with a tip curved through 45 degrees.

The curved tip reaches around edges and under tissue, so it is used to separate fine tissue and adhesions, lift small flaps and test ossicle movement where a straight point cannot reach.

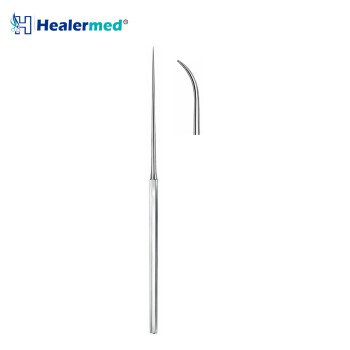

• Rosen 45 Degree Curved Tip Micro Ear Needle, 16cm — The Rosen needle has a tip curved through 45 degrees, for separating fine tissue and reaching around edges in the middle ear.

Which Ear Needle Does What

• Politzer tympanum needles — opening the eardrum (paracentesis)
• Barbara micro ear needles — fine handling and positioning in the middle ear
• Rosen micro ear needles — curved reach around edges in the middle ear

Specifications

Clinical Uses

• Paracentesis (myringotomy) and draining the middle ear
• Opening a furuncle in the ear canal
• Handling and positioning grafts in tympanoplasty
• Separating fine adhesions and checking ossicle movement
• Stapes and middle ear microsurgery

Care and Sterilization

Needle points are very fine and bend easily. Use them on soft tissue only, never on bone or wire, and store each needle with its point in a tip guard. Check the point under magnification at every cycle; a bent or blunt point should be repaired or replaced. Clean the instrument straight after use, before blood and tissue dry on the tip. Use a soft brush and an ultrasonic cleaner, rinse, and dry fully. Put a drop of instrument lubricant on the joint before sterilizing. Steam autoclave at up to 134°C in a tray with a silicone mat or tip guard, so the fine tip never knocks against other instruments. Check the tip under magnification at every cycle.

Why Buy Direct From the Manufacturer

Made by Healermed Instruments, a surgical instrument manufacturer and exporter in Sialkot, Pakistan. Buying from the factory removes the importer and distributor margin. Production runs under an ISO 13485 and FDA CGMP quality system, with ISO 9001 and CE Mark certification. OEM manufacturing and private-label branding are available for distributors and brand owners.

Complete Ear Surgery Instrument Range

Every Healermed micro ear instrument, grouped by category. Part of the Ear Surgery Instruments range under ENT Surgical Instruments.

Micro Ear Forceps · 15 sizes · Straight, bent up, right and left jaws in 3 tip sizes

Straight Smooth 4x0.8mm Straight Serrated 4x0.8mm Bent Up Serrated 4x0.8mm Angled Right Serrated 4x0.8mm Angled Left Serrated 4x0.8mm Straight Smooth 4x0.6mm Straight Serrated 4x0.6mm Bent Up Serrated 4x0.6mm Angled Right Serrated 4x0.6mm Angled Left Serrated 4x0.6mm Straight Smooth 3.5x0.6mm Straight Serrated 3.5x0.6mm Bent Up Serrated 3.5x0.6mm Angled Right Serrated 3.5x0.6mm Angled Left Serrated 3.5x0.6mm

Micro Ear Cup Forceps · 8 sizes · Straight, bent up, right and left cups in 2 sizes

Cup Straight 4x1mm Cup Bent Up 4x1mm Cup Bent Right 4x1mm Cup Bent Left 4x1mm Cup Straight 3.5x0.6mm Cup Bent Up 3.5x0.6mm Cup Bent Right 3.5x0.6mm Cup Bent Left 3.5x0.6mm

Micro Ear Nippers · 4 sizes · House-Dieter malleus nippers, 4 cutting directions

Malleus Nipper Up Malleus Nipper Down Malleus Nipper Right Malleus Nipper Left

Wire Bending Forceps · 2 sizes · McGee forceps for stapes prosthesis wire

McGee 3.5mm Tip McGee 6mm Tip

Fuller Prosthesis Introducing Forceps · 1 size · Holds and places a middle ear prosthesis

Fuller 7mm Tip

Wullstein Micro Ear Scissors · 4 items · 4mm blades, 9cm, straight, up, right, left

Wullstein Straight Wullstein Bent Up Wullstein Bent Right Wullstein Bent Left

Bellucci Micro Ear Scissors · 4 items · 4mm blades, 8cm, straight, up, right, left

Bellucci Straight Bellucci Bent Up Bellucci Bent Right Bellucci Bent Left

Shea-Bellucci Micro Ear Scissors · 4 items · 8mm blades, 8cm, straight, up, right, left

Shea-Bellucci Straight Shea-Bellucci Bent Up Shea-Bellucci Bent Right Shea-Bellucci Bent Left

Micro Ear Knives · 12 knives · Sickle, roller, Rosen, Plester and Sexton ear knives

Angled Sickle Schuknecht Roller Vertical Roller Horizontal Rosen Straight Rosen 45° Rosen 90° Wullstein Sickle Tabb Sickle Plester Mucosa Sexton Straight Sexton 45° Bent Sexton-Gerzog Bayonet

Looking for nose or throat instruments? Browse all ENT Surgical Instruments, or go back to Ear Surgery Instruments.

Frequently Asked Questions

What are micro ear needles used for?

Politzer tympanum needles open the eardrum to drain the middle ear. Barbara and Rosen micro needles handle grafts, separate fine adhesions and test ossicle movement in middle ear microsurgery.

What is a tympanum needle?

Another name for a paracentesis needle: a fine, sharp needle used to make a small opening in the eardrum. The Politzer needle is the classic pattern.

Which micro ear needles should I buy first?

A Politzer tympanum needle for paracentesis, and for microsurgery a straight Barbara needle plus one angled or curved tip needle.

Are micro ear needles autoclavable?

Yes. All are reusable and can be steam autoclaved at up to 134°C.

What is the minimum order quantity for bulk orders?

The minimum order is agreed per order, not fixed. Send the model codes and quantities you need through the wholesale request page and we confirm the minimum for that order.

Do you provide samples?

Yes. Samples are available on request and the buyer pays the shipping. Tell us the model codes you want to check.

Can I order a custom size?

Yes. Other tip lengths, tip widths and working lengths can be made on request. Send your specification through the wholesale request page and our production team will confirm.
