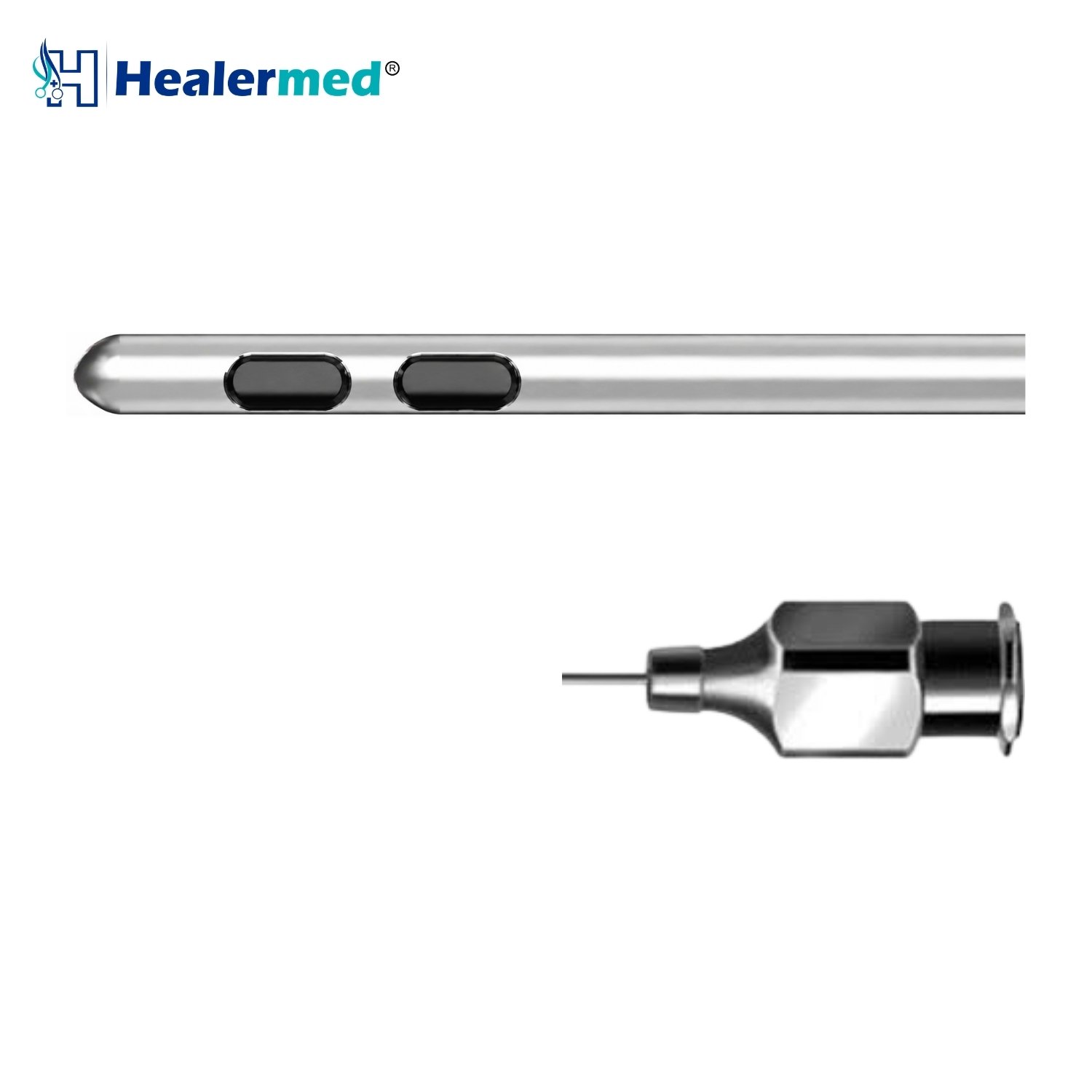

Bi-Port Liposuction Cannula – Universal Luer Lock

Liposuction Cannulas and Accessories › Bi-Port Liposuction Cannulas › Bi-Port Liposuction Cannula – Universal Luer Lock

The Bi-Port Liposuction Cannula with Universal Luer Lock fitting is a bi-port liposuction cannula is a blunt-tip aspiration cannula with two round holes set in the same straight line on one side of the shaft, used to remove subcutaneous fat under vacuum during liposuction and body contouring. Two openings facing the same way give a directional, predictable draw that suits mid-stage contouring and refinement. It is listed under Bi-Port Liposuction Cannulas, part of the Healermed Liposuction Cannulas and Accessories range.

Surgeons also refer to these instruments as two hole in line cannulas, dual port lipo cannulas, twin port aspiration cannulas, or 2 hole liposuction cannulas.

Bi-Port Liposuction Cannula — Universal Luer Lock

Luer lock is a standard, but manufacturing tolerances differ between brands, and a hub cut to the tight end of the tolerance band can seat poorly on some syringes. A universal hub is machined to sit centrally in that band, so it locks properly across whatever stock is on the shelf that week. Under vacuum a poor seat is not just annoying, it leaks.

How the Bi-Port Pattern Works

A bi-port cannula carries two round holes set in the same straight line along one side of the shaft. It sits deliberately between a single hole and a three-hole in-line pattern: enough aperture to clear tissue at a reasonable rate, few enough openings that the surgeon still knows exactly where the fat is coming from.

Because both holes face the same way, the cannula is aimed rather than swept. Rotating the shaft turns the whole aperture, so the surgeon chooses the plane directly — ports down for the deep layer, ports up for superficial refinement. Two openings in one line also give a predictable draw: they load the same side of the shaft evenly, so the instrument behaves the same on every pass instead of pulling differently depending on how it is held.

The practical position of this cannula is mid-stage and refinement work. It removes roughly twice what a single hole does, which is enough to make progress across an area, while staying controlled enough for the surgeon to stop at the right point. Many surgeons use it as the step between a multi-port debulking cannula and a single hole finishing instrument.

The distal tip is closed and rounded. It separates the plane by blunt dissection as the cannula advances, pushing vessels and nerves aside rather than dividing them, and the vacuum works through the two side holes rather than the end of the shaft.

Key Features

• ✔ Universal Luer lock hub seats correctly across syringe and tubing brands
• ✔ Two round holes in one line give a directional draw the surgeon aims by rotating the shaft
• ✔ Even load on one side of the shaft, so the cannula behaves the same on every pass
• ✔ Roughly twice the removal of a single hole while staying controllable
• ✔ Closed blunt tip separates the plane without cutting vessels or nerves
• ✔ One-piece German stainless steel shaft, fully reusable
• ✔ Custom diameters, lengths and hole spacing available on request

Specifications

Clinical Applications

• Mid-stage contouring between debulking and final refinement
• Layer-specific work where the surgeon rotates the ports to choose the plane
• Abdomen, flanks and thighs with the 3.0mm to 4.0mm diameters
• Arm, neck and submental work with the 2.0mm to 2.5mm diameters

Material and Sterilization

The cannula is made from German stainless steel with a passivated surface that resists corrosion and pitting through repeated cleaning cycles. It is reusable and can be steam autoclaved at 134°C. Flush the lumen and the opening with clean water immediately after use and dry fully before autoclaving. Both holes sit on the same side, so hold that side down while flushing to be sure water runs through each one rather than past them, and check both edges under light before sterilization.

How to Choose

Choose the universal hub if your syringe stock varies by brand or you supply a hospital group buying consumables centrally. Diameter sets how much fat comes out per pass and length sets the reach. For body contouring of the abdomen, flanks and thighs, the 3.0mm to 4.0mm diameters in 25cm to 35cm are the usual working range. The 2.0mm to 2.5mm range in 15cm to 25cm covers arms, the neck and refinement work, which is where the bi-port pattern is chosen most often. The 1.0mm to 1.5mm diameters in 5cm to 12cm are for facial and submental contouring. Match the fitting to the syringe, vacuum line or handpiece already in your theater.

Why Buy Direct From the Manufacturer

Manufactured by Healermed Instruments, a surgical instruments manufacturer and exporter based in Sialkot, Pakistan. Factory-direct pricing removes the importer and distributor layer. Production runs under an ISO 13485 and FDA CGMP quality system, with ISO 9001 and CE Mark certification. OEM manufacturing and custom branding are available for distributor and brand-owner orders.

Choose Your Fitting

Every fitting below carries the same bi-port shaft, the same closed blunt tip and the same size grid. Pick the one that matches the syringe, vacuum line or handpiece already in your theater.

More Liposuction Cannulas and Accessories

Healermed manufactures the full range of cannulas for liposuction, from single hole finishing cannulas to high-flow debulking patterns, in 84 diameter and length combinations.

Frequently Asked Questions

What is a bi-port liposuction cannula used for?

It is used to remove subcutaneous fat under vacuum during liposuction and body contouring. Two round holes in one line along a single side give a directional draw the surgeon aims by rotating the shaft, at a removal rate that suits mid-stage contouring and refinement rather than bulk debulking.

What is the difference between a bi-port and a single hole cannula?

A bi-port cannula has two holes in one line; a single hole cannula has one. The bi-port removes roughly twice as much per pass and covers ground faster, while keeping the same directional aim. The single hole gives finer point control and is the better choice for the smallest corrections at the end of a case.

Is this cannula autoclavable?

Yes. The instrument is fully reusable and can be steam autoclaved at 134°C. Flush the lumen and the opening with clean water immediately after use, remove all residue before sterilization, and dry completely. Inspect the opening edge under light at every cycle, since edge condition decides how the cannula behaves in tissue.

Which size should I use?

For body contouring of the abdomen, flanks and thighs, 3.0mm to 4.0mm diameters in 25cm to 35cm are the usual range. Arms, neck and refinement work suit 2.0mm to 2.5mm in 15cm to 25cm, which is where the bi-port pattern is chosen most often. Facial and submental contouring uses 1.0mm to 1.5mm in 5cm to 12cm.

What is the minimum order quantity for bulk orders?

The minimum order quantity is agreed per order rather than set at a fixed number. Send us the sizes, fittings and quantities you need through the wholesale request page and we will confirm the minimum for that specification. This lets a small distributor start with a trial order and a larger importer scale up on the same terms.

Do you provide samples?

Yes. Samples are available on request and the buyer covers the shipping charges. Tell us the diameter and length you want to evaluate and we will confirm what can be sent. Testing a sample against the syringe brands you actually stock confirms the universal hub fits your supply.

Can I order a custom size?

Yes. Custom diameters, working lengths and opening dimensions are available on request in addition to the standard size grid. Send your specification through the wholesale request page and our production team will confirm what can be produced. Custom branding is also available for distributor and OEM orders.
