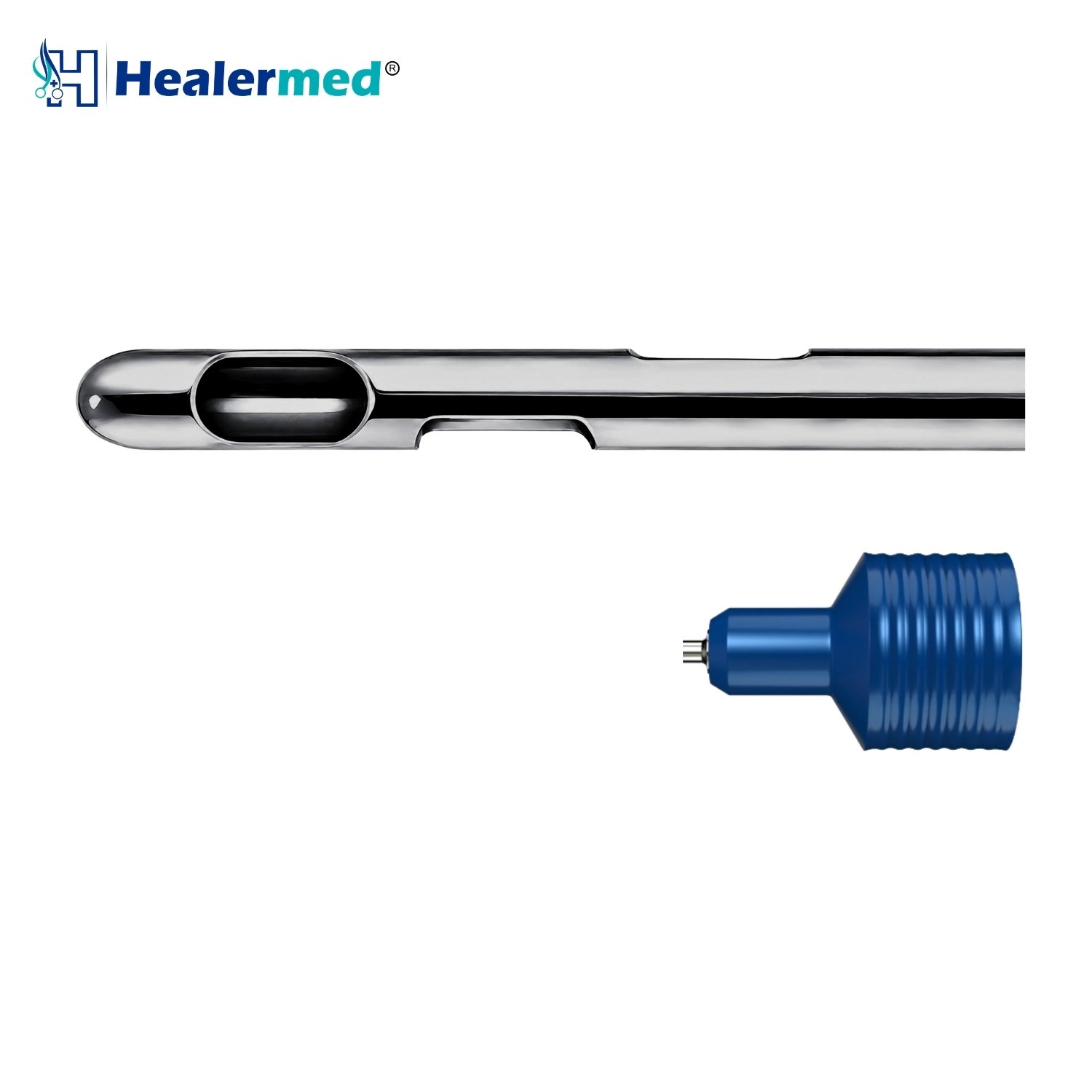

Spiral Port Cannula – Toomey Hub, 60cc

The 3 Spiral Port Liposuction Cannula with Toomey Hub is a blunt-tip aspiration cannula with three spiral ports, built to fit 60cc Toomey-tip syringes for syringe-assisted liposuction and fat harvesting. The wide, non-Luer Toomey opening lets aspirated fat move without the resistance a narrow taper creates. This fitting is made from 2.0mm (14G) upward. It is listed under 3 Spiral Port Liposuction Cannulas, part of the Healermed Liposuction Cannulas and Accessories range.

Buyers also search for this instrument as a 60cc Toomey Carraway cannula, a syringe liposuction cannula, or a spiral port fat harvesting cannula.

Toomey Hub Spiral Port Cannula for 60cc Syringes

A Toomey tip is a wide-bore syringe fitting, not a Luer taper. It exists because aspirated fat is thick and moves slowly through a narrow connector. Paired with a spiral port shaft it gives a hand-modulated draw across a wide, soft-edged band — useful in fat harvesting and in superficial work where the syringe gives the surgeon direct control of the vacuum.

How the Spiral Port Pattern Works

The three ports are not grouped at one point on the shaft. They are stepped along it and rotated around it, so each opening sits further back and turned to a different side than the one before — a spiral rather than a cluster. That layout is the whole difference between this cannula and a Mercedes tip, where the three ports sit level with each other around the circumference.

The effect shows up in the tunnel the cannula leaves. With the ports level, one pass draws from one narrow band of tissue, and even coverage depends on the surgeon laying the passes side by side accurately. With the ports spiralled, a single pass takes a little from three different depths and directions at once, so the tunnel is wider and less sharply defined. Adjacent passes overlap more readily and the transitions between them are softer.

That is why a spiral pattern is chosen where a visible tunnel line would be a problem: in the superficial layer, over the flanks and back, and in thin or previously operated tissue. It removes at a moderate rate rather than a fast one, and gives back a more forgiving result at the edges.

The distal tip is closed and rounded. It separates the plane by blunt dissection as the cannula advances, pushing vessels and nerves aside rather than dividing them, and the vacuum works through the three spiral ports rather than the end of the shaft.

Key Features

• ✔ Toomey hub matched to standard 60cc Toomey-tip syringes
• ✔ Hand-modulated syringe vacuum across a wide, soft-edged draw band
• ✔ Three ports stepped along the shaft and rotated — a spiral, not a cluster
• ✔ Each pass draws from three depths and angles, so the tunnel is wider and softer edged
• ✔ Adjacent passes overlap and blend more readily, reducing visible tunnel lines
• ✔ Closed blunt tip separates the plane without cutting vessels or nerves
• ✔ Deburred port edges for clean passage through fat
• ✔ One-piece German stainless steel shaft, fully reusable

Specifications

Clinical Applications

• Syringe-assisted liposuction of the abdomen, flanks and thighs
• Fat harvesting for grafting
• Superficial work where the surgeon modulates vacuum by hand
• Arm, neck and submental contouring with the shorter lengths

Material and Sterilization

The cannula is made from German stainless steel with a passivated surface that resists corrosion and pitting through repeated cleaning cycles. It is reusable and can be steam autoclaved at 134°C. Flush the lumen and all three ports with clean water immediately after use and dry fully before autoclaving. Because the ports sit at different points along the shaft, turn the cannula while flushing so water passes through each one, and check every opening under light before sterilization.

How to Choose

The Toomey fitting starts at 2.0mm, so for finer facial work below 2.0mm choose the Luer lock version instead. Within the Toomey range, 3.0mm to 4.0mm in 25cm to 35cm suits body contouring, while 2.0mm to 2.5mm in 15cm to 25cm covers arms, neck and superficial work.

Why Buy Direct From the Manufacturer

Manufactured by Healermed Instruments, a surgical instruments manufacturer and exporter based in Sialkot, Pakistan. Factory-direct pricing removes the importer and distributor layer. Production runs under an ISO 13485 and FDA CGMP quality system, with ISO 9001 and CE Mark certification. OEM manufacturing and custom branding are available for distributor and brand-owner orders.

Related Instruments

Other fittings in the same cannula range:

• 3 Spiral Port Liposuction Cannula – Luer Lock
• 3 Spiral Port Liposuction Cannula – Super Luer Lock
• 3 Spiral Port Liposuction Cannula – MicroAire PAL Compatible
• 3 Spiral Port Liposuction Cannula – main product page
• 3 Spiral Port Liposuction Cannulas – all fittings

Frequently Asked Questions

What is a Toomey hub spiral port cannula used for?

It is used with 60cc Toomey-tip syringes for syringe-assisted liposuction and fat harvesting. The wide non-Luer hub keeps aspirated fat moving instead of clogging at a narrow connector, while the spiral ports draw across a wide, soft-edged band that blends between passes.

What is the difference between a spiral port and a Mercedes tip cannula?

On a Mercedes tip the three ports sit level with each other around the shaft; on a spiral port cannula they are stepped along the shaft and rotated, so each sits at a different point and angle. Mercedes clears faster from a narrow band; the spiral pattern draws from a wider, softer-edged band and blends between passes more easily.

Is this cannula autoclavable?

Yes. The instrument is fully reusable and can be steam autoclaved at 134°C. Flush the lumen and all three ports with clean water immediately after use, turning the cannula so water passes through each one, then dry completely before sterilization. Inspect every opening each cycle, since the pattern depends on all three drawing evenly.

What is the minimum order quantity for bulk orders?

The minimum order quantity is agreed per order rather than set at a fixed number. Send us the sizes, fittings and quantities you need through the wholesale request page and we will confirm the minimum for that specification. This lets a small distributor start with a trial order and a larger importer scale up on the same terms.

Do you provide samples?

Yes. Samples are available on request and the buyer covers the shipping charges. Tell us the diameter and length you want to evaluate and we will confirm what can be sent. Testing a sample first confirms the hub seats correctly on the 60cc syringes you already stock.

Can I order a custom size?

Yes. Custom diameters, working lengths and port configurations are available on request in addition to the standard size grid. Send your specification through the wholesale request page and our production team will confirm what can be produced. Custom branding is also available for distributor and OEM orders.
